Illustration similar ©ULTRA Germany

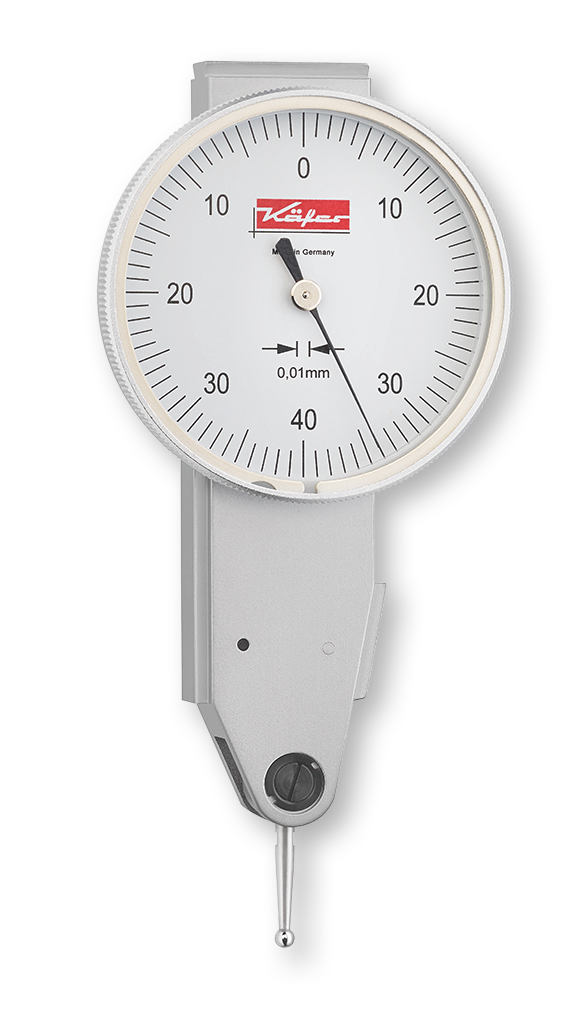

Dial test indicators (Lever type) in box Model according to DIN 2270 C
- DIN 2270
- Metal housing
- Turnable outer ring
- Anti-magnetic indicator
- Precision movement in ceramic, ruby or sapphire bearings
- Dovetail slide x3
- Probe swivelling through 240°, carbide ball Ø 2mm, M1.6
1340 1.. / 1341 1.. / 1342 1..: Dial test indicators standard
1340 2..: Dial test indicators Protection class IP53
Delivered in a case incl. clamping shaft Ø 8mm and spanner
Dial test indicators (Lever type) in box Model according to DIN 2270 C
| Size: | 0,5/0,01/35,7mm Ø40mm |
|---|---|
| Article no.: | 1342104 |
| Brand: | KÄFER |
| Manufacturer number: | K 45 |
| Diameter: | 40mm |
| Execution: | Standard |
| Reading: | 0,01mm |
| Probe length: | 35,7mm |
| Model: | DIN 2270 C |
| Weight: | 0.2kg |
Dial test indicators (Lever type) in box
Model according to DIN 2270 C
0,5/0,01/35,7mm Ø40mm
Article no.: 1342104
€199.00*
Prices excl. VAT and shipping costs
Custom price after Login
approx. 2 weeks
Shipping method:
Parcel delivery service
Weight:
0.2kg
EAN / GTIN:
4066918047793
Manufacturer number:
K 45
Customs code:
90318020
