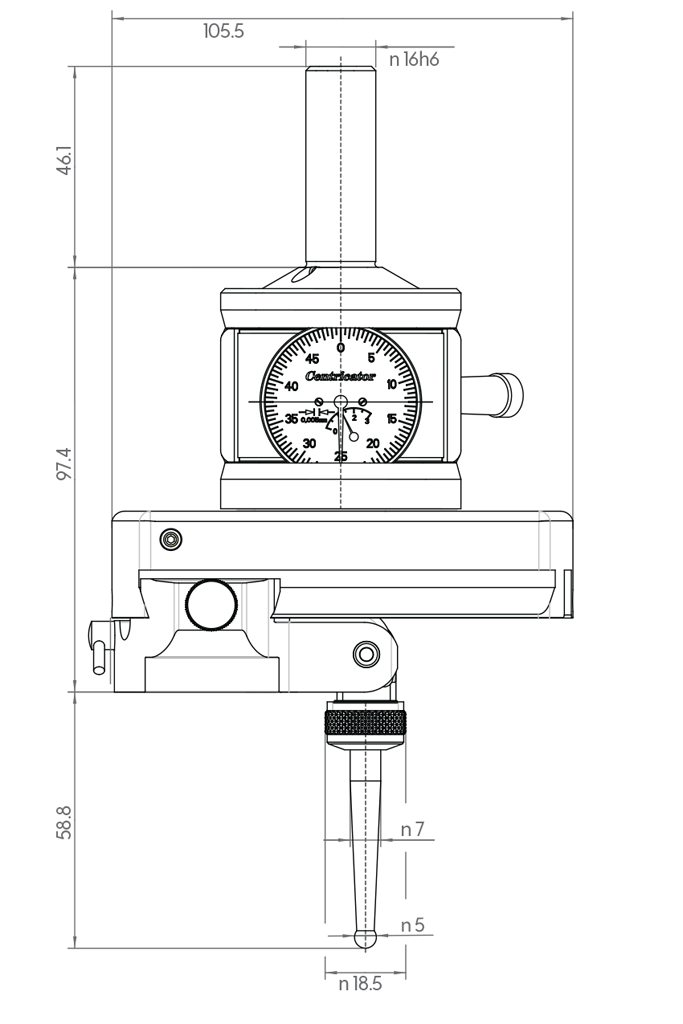

Centering devices CENTRICATOR C III S MICHAEL DECKEL including probes, clamping shaft Ø 16mm
- Works standard
- Horizontal and vertical application
- Adjustable slides, fixed clamping shaft Ø 16mm
- Integrated non-turning dial gauge
Delivered in box
Contents:
- Centering instrument
- String holder
- Magnet holder
- Straight probe, ball Ø 5mm
- Screwdriver SW 3
- Operating manual
! Additional probes are required for the specified work ranges, see accessories.
! Angular probes Ø 5mm, accessories set with 4 probes for CENTRICATOR on request.
| Centering devices CENTRICATOR C III S MICHAEL DECKEL including probes, clamping shaft Ø 16mm | |
|---|---|
| Size: | Ø 2-400 / Ø 0-300 / 0,005mm |
| Article number: | 1373101 |
| Brand: | DECKEL |
| Manufacturer number: | C III S |
| Work range inside: | Ø 2-400mm |
| Reading: | 0,005mm |
| Work range outside: | Ø 0-300mm |
| Adjustable slides: | Without |
| Work range plane: | Ø 90-480mm |
| Centering error max.: | 0,005mm |
| Clamping shaft: | Ø 16mm |
| Weight: | 0.9kg |
