Digital internal micrometer sets, 3-point XTD-MULTI in box incl. 3x readout units, setting rings and UKAS calibration 20-50/0,001/66/80mm Bluetooth
€4,869.00*
Custom price after Login
Do you need more information?
| Login/Register | |
| +49 (0) 6021 42 999 00 | |
| Contact |
Digital internal micrometer sets, 3-point XTD-MULTI in box incl. 3x readout units, setting rings and UKAS calibration
- DIN 863
- Protection class IP67, Sylvac System
- Tungsten carbide-tipped measuring faces (< 12.5mm with steel measuring faces hardened)
- Large LCD display
- With Bluetooth function and SylvacBT Smart App for a wireless data transmission
- Sturdy ratchet
- All reading units calibrated to match the measuring heads
Delivered in a case, including setting rings and UKAS calibration certificate
Functions:
- On/Off
- mm/inch commutation
- Zero setting at any position
- Preset function ±
- Max. / min. memory
- Hold function
- Data output Proximity
Contents:
- 3 piece Digital readout units

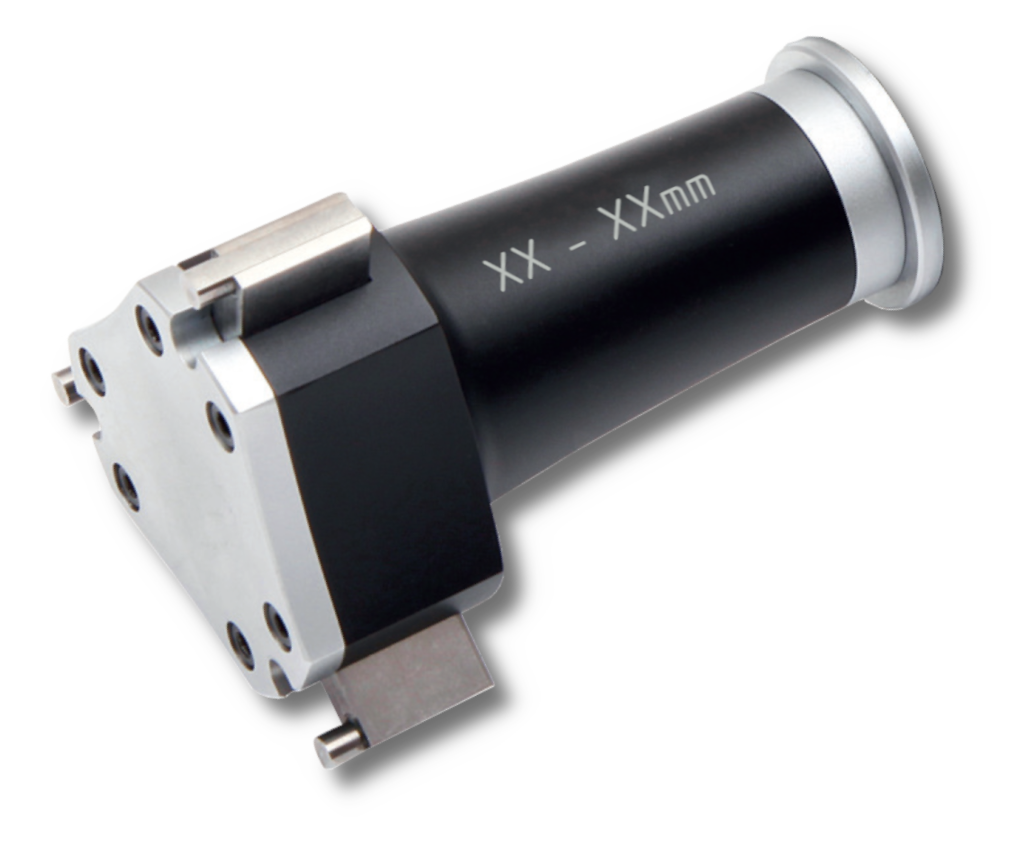

- 3 pieces measuring heads (1 piece of each measuring range 20-25 / 25-35 / 35-50mm)
- 2 pieces setting rings (1 piece of each Ø 20mm / 35mm)
| Digital internal micrometer sets, 3-point XTD-MULTI in box incl. 3x readout units, setting rings and UKAS calibration | |
|---|---|
| Size: | 20-50/0,001/66/80mm Bluetooth |
| Article number: | 2502303b |
| Brand: | BOWERS |
| Manufacturer number: | SXTD5U-BT |
| Reading: | 0,001mm/.00005 inch |
| Measuring range: | 20-50mm/.8–2 inch |
| Protection class: | IP67 |
| Measuring depths: | 66/80mm |
| Accuracy: | 0,004mm |
| Measuring force: | 32-15N |
| Setting rings: | Ø 20/35mm |
| Size A: | 0,5mm |
| Data output: | Proximity |
| Weight: | 5.2kg |
€151.00*
All variations:
€2,439.00*
€3,697.00*
€4,869.00*
